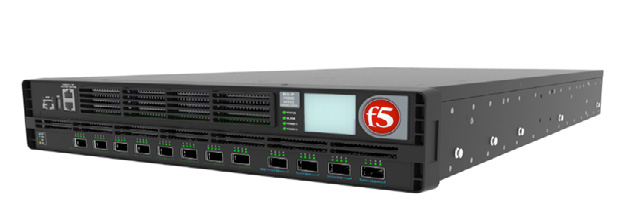

F5 BIG-IP i15000 Series

Specifications

i15800/i15820-DF

i15600/i15600-N

Intelligent Traffic Processing:

L7 requests per second: 10M

L4 connections per second: 4.2M L4 HTTP requests per second: 35M

Maximum L4 concurrent connections: 300M Throughput: 320 Gbps/160 Gbps L4/L7

(160 Gbps/140 Gbps L4/L7 in i15820-DF)

L7 requests per second: 5M

L4 connections per second: 2.4M L4 HTTP requests per second: 28M

Maximum L4 concurrent connections: 300M Throughput: 320 Gbps/160 Gbps L4/L7

Hardware Offload SSL/TLS:

ECC†: 100K TPS (250k TPS in i15820-DF) (ECDSA P-256) RSA: 160K TPS (320K TPS in i15820-DF) (2K keys)

50 Gbps bulk encryption (80/100G Gbps bulk encryption (AES- CBC/AES-GCM) in i15820-DF*)

ECC†: 60K TPS (ECDSA P-256) RSA: 80K TPS (2K keys)

50 Gbps bulk encryption*

FIPS SSL:

35K (RSA) in i15820-DF

8.5K (ECDSA P-256) in i15820-DF

N/A

Hardware Compression:

60 Gbps (120 Gbps in i15820-DF)

N/A

Hardware DDoS Protection:

210M SYN cookies per second (105M SYN CPS in i15820-DF)

140M SYN cookies per second

TurboFlex Performance Profiles:

Tier 3 (4x BW)

N/A

Software Compression:

N/A

30 Gbps

Software Architecture:

64-bit TMOS

64-bit TMOS

On-Demand Upgradable:

N/A

Yes

Virtualization (Maximum Number of vCMP Guests):

56 (28 in i15820-DF)

N/A

Processor:

Two 14-Core Intel Xeon processors

(total 56 hyperthreaded logical processor cores)

Two 14-Core Intel Xeon processors

(total 56 hyperthreaded logical processor cores)

Memory:

512 GB DDR4

512 GB DDR4

Hard Drive:

1x 1.6 TB Enterprise Class SSD (2x 1.6 TB Enterprise Class SSD in i15820-DF)

1x 1.6 TB Enterprise Class SSD

Ethernet and Fiber CU Ports:

N/A

N/A

40 Gigabit Fiber Ports (QSFP+):

8 SR4/LR4 (sold separately) (QSFP+ optical breakout cable assemblies available to convert to 10G ports)

8 SR4/LR4 (sold separately) (QSFP+ optical breakout cable assemblies available to convert to 10G ports)

100 Gigabit Fiber Ports (QSFP28):

4 SR4/LR4 (sold separately) QSFP28

4 SR4/LR4 (sold separately) QSFP28

Power Supply:

2x1500W Platinum AC PSU (i15800) or DC (i15800-N)

2x1500W Platinum AC PSU (i15600) or DC (i15600-N)

Typical Consumption:

885W (dual power supply, 48V DC or 110V AC input)** (815W in i15820-DF)

885W (dual power supply, 48V DC or 110V AC input)**

Input Voltage:

100-240 VAC +/- 10% auto switching, 50/60hz (i15800) -48 to -60 VDC Minimum. Start up voltage: -44 VDC (i15800-N)

100-240 VAC +/- 10% auto switching, 50/60hz (i15600)

-48 to -60 VDC Minimum. Start up voltage: -44 VDC (i15600-N)

Typical Heat Output:

3020 BTU/hour (2785 BTU/hour in i15820-DF) (dual power supply, 48V DC or 110V AC input)**

3020 BTU/hour (dual power supply, 48V DC or 110V AC input)**

Dimensions:

3.45” (8.76 cm) H x 17.9” (45.47 cm) W x 30.2” (76.71 cm)

D2U industry standard rack-mount chassis

3.45” (8.76 cm) H x 17.9” (45.47 cm) W x 30.2” (76.71 cm) D

2U industry standard rack-mount chassis

Weight:

76 lbs. (34.47 kg) (Dual power supply)

76 lbs. (34.47 kg) (Dual power supply)

Operating Temperature:

32° to 104° F (0° to 40° C)

32° to 104° F (0° to 40° C)

Operational Relative Humidity:

5% to 85% at 40º C

5% to 85% at 40º C

Safety Agency Approval:

ANSI/UL 60950-1-2014***

CSA 60950-1-07, Including A1:2011+A2:2014 IEC 60950-1:2005, A1:2009+A2:2013

EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013

ANSI/UL 60950-1-2014

CSA 60950-1-07, Including A1:2011+A2:2014 IEC 60950-1:2005, A1:2009+A2:2013

EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013

Certifications/ Susceptibility Standards:

ETSI EN 300 386 V1.6.1 (2012)

EN 55032:2012/AC:2013 Class A; EN 61000-3-2:2014

EN 61000-3-3:2013; As Information Technology Equipment (ITE) Class A per (as applicable): EN 55024:2010

FCC Class A (Part 15), IC Class A, VCCI Class A NEBS Level 3 compliant

ETSI EN 300 386 V1.6.1 (2012)

EN 55032:2012 Class A; EN 61000-3-2:2014

EN 61000-3-3:2013; EN 55024:2010

FCC Class A (Part 15), IC Class A, VCCI Class A NEBS Level 3 compliant
