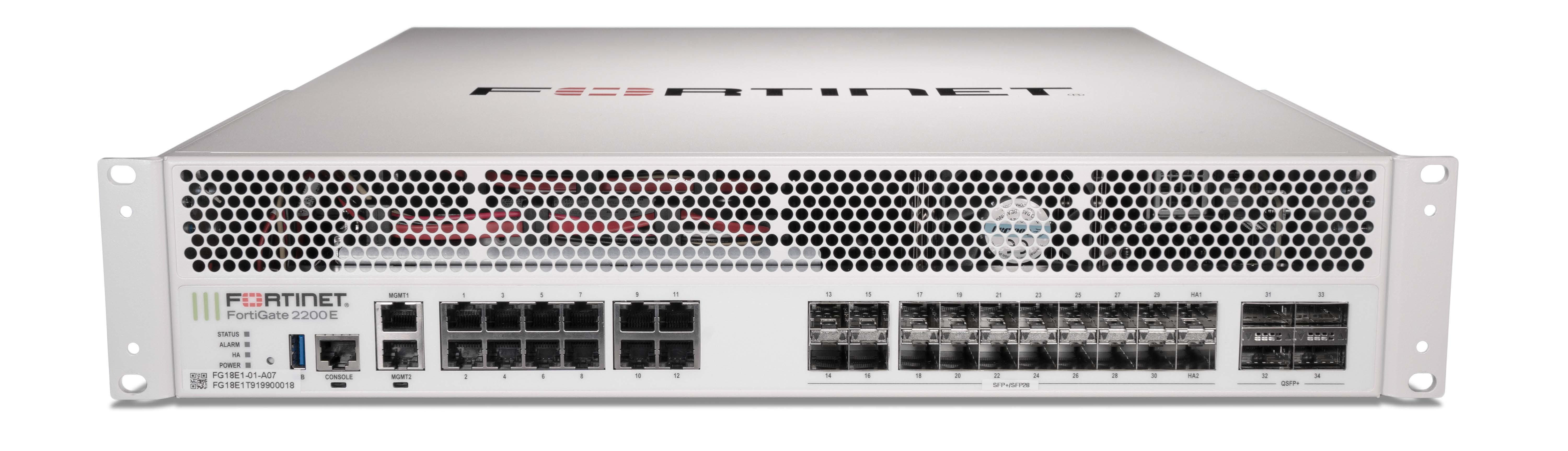

FortiGate® 2200E Series

No image set
Base price
Description
The FortiGate 2200E series delivers high performance next generation firewall (NGFW) capabilities for large enterprises and service providers. With multiple high-speed interfaces, high-port density, and high-throughput, ideal deployments are at the enterprise edge, hybrid data center core, and across internal segments. Leverage industry-leading IPS, SSL inspection, and advanced threat protection to optimize your network performance. Fortinet’s Security-Driven Networking approach provides tight network integration to the new security generation.

FORTIGATE 2200E

FORTIGATE 2201E

Interfaces and Modules

Hardware Accelerated 40 GE QSFP+
Slots

4

Hardware Accelerated 25 GE SFP28 /
10 GE SFP+ / GE SFP HA Slots

2

Hardware Accelerated 25 GE SFP28 /
10 GE SFP+ / GE SFP Slots

18

Hardware Accelerated GE RJ45 Ports

12

GE RJ45 Management Ports

2

USB Port

1

Console Port

1

Onboard Storage

0

2x 1 TB SSD

Included Transceivers

2x SFP+ (SR 10 GE)

System Performance — Enterprise Traffic Mix

IPS Throughput 2

21.8 Gbps

NGFW Throughput 2, 4

13.5 Gbps

Threat Protection Throughput 2, 5

11 Gbps

System Performance and Capacity

IPv4 Firewall Throughput
(1518 / 512 / 64 byte, UDP)

158 / 155 / 100 Gbps

IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP)

158 / 155 / 100 Gbps

Firewall Latency (64 byte, UDP)

3.09 μs

Firewall Throughput (Packet per Second)

150 Mpps

Concurrent Sessions (TCP)

24 Million

New Sessions/Second (TCP)

500,000

Firewall Policies

100,000

IPsec VPN Throughput (512 byte) 1

98 Gbps

Gateway-to-Gateway IPsec VPN Tunnels

20,000

Client-to-Gateway IPsec VPN Tunnels

100,000

SSL-VPN Throughput

10 Gbps

Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode)

30,000

SSL Inspection Throughput
(IPS, avg. HTTPS)
3

17 Gbps

SSL Inspection CPS (IPS, avg. HTTPS) 3

9,500

SSL Inspection Concurrent Session
(IPS, avg. HTTPS)
3

2.5 Million

Application Control Throughput
(HTTP 64K)
2

52 Gbps

CAPWAP Throughput (HTTP 64K)

60 Gbps

Virtual Domains (Default / Maximum)

10 / 500

Maximum Number of FortiSwitches Supported

196

Maximum Number of FortiAPs
(Total / Tunnel)

4,096 / 2,048

Maximum Number of FortiTokens

20,000

High Availability Configurations

Active-Active, Active-Passive, Clustering
