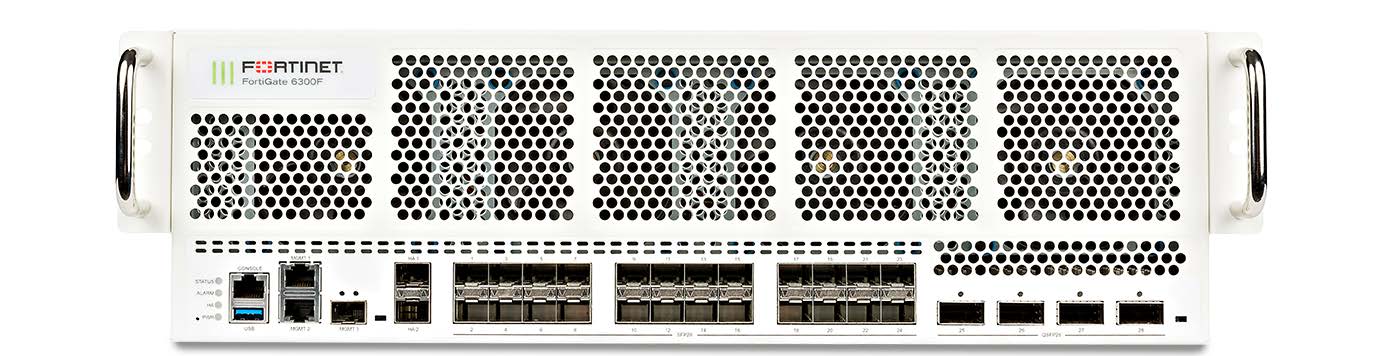

The FortiGate 6000F series delivers high performance next generation firewall (NGFW) capabilities for large enterprises and service providers. With multiple high-speed interfaces, high-port density, and high-throughput, ideal deployments are at the enterprise edge, hybrid data center core, and across internal segments. Leverage industry-leading IPS, SSL inspection, and advanced threat protection to optimize your network’s performance. Fortinet’s Security- Driven Networking approach provides tight network integration to the new security generation.
FORTIGATE |
6300F/-DC
|
6500F/-DC
|
Interfaces and Modules |
||
Hardware Accelerated 40/100 GE QSFP28 Slots |
4 |
|
Hardware Accelerated 1/10/25 GE SFP28 Slots |
24 |
|
Hardware Accelerated 10 GE SFP+ Slots |
3 |
|
GE RJ45 Management Ports |
2 |
|
USB Port |
1 |
|
Console Port |
1 |
|
Onboard Storage |
2x 1 TB NVMe (for 6301F and 6501F only) |
|
Included Transceivers |
2x SFP+ (SR 10 GE) |
|
System Performance — Enterprise Traffic Mix |
||
IPS Throughput 2 |
110 Gbps |
170 Gbps |
NGFW Throughput 2, 4 |
90 Gbps |
150 Gbps |
Threat Protection Throughput 2, 5 |
60 Gbps |
100 Gbps |
System Performance and Capacity |
||
IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) |
239 / 238 / 135
|
239 / 238 / 135
|
IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) |
239 / 238 / 135
|
239 / 238 / 135
|
IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP) |
239 / 238 / 135
|
239 / 238 / 135
|
Firewall Latency (64 byte, UDP) |
4.80 μs |
4.80 μs |
Firewall Throughput (Packet per Second) |
202.5 Mpps |
202.5 Mpps |
Concurrent Sessions (TCP) |
120 Million |
200 Million |
New Sessions/Second (TCP) |
2 Million |
3 Million |
Firewall Policies |
200 000 |
200 000 |
IPsec VPN Throughput (512 byte) 1 |
96 Gbps |
160 Gbps |
Gateway-to-Gateway IPsec VPN Tunnels |
16 000 |
16 000 |
Client-to-Gateway IPsec VPN Tunnels |
90 000 |
90 000 |
SSL-VPN Throughput |
9 Gbps |
9 Gbps |
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) |
30 000 |
30 000 |
SSL Inspection Throughput (IPS, avg. HTTPS) 3 |
66 Gbps |
110 Gbps |
SSL Inspection CPS (IPS, avg. HTTPS) 3 |
30 000 |
50 000 |
SSL Inspection Concurrent Session (IPS, avg. HTTPS) 3 |
10 Million |
18 Million |
Application Control Throughput (HTTP 64K) 2 |
150 Gbps |
220 Gbps |
CAPWAP Throughput (HTTP 64K) |
N/A |
N/A |
Virtual Domains (Default / Maximum) |
10 / 500 |
|
Maximum Number of FortiSwitches Supported |
256 |
|
Maximum Number of FortiAPs (Total / Tunnel) |
N/A |
|
Maximum Number of FortiTokens |
20 000 |
|
High Availability Configurations |
Active-Active (FGSP), Active-Passive, Clustering |
|
Dimensions and Power |
||
Height x Width x Length (inches) |
5.20 x 17.20 x 26.18 |
5.3 x 17.2 x 27.3 |
Height x Width x Length (mm) |
132 x 437 x 665 |
133 x 437 x 694 |
Weight |
67.68 lbs (30.7 kg)
|
78.26 lbs (35.5 kg)
|
Form Factor
|
Rack Mount, 3 RU |
|
AC Power Supply |
100–240V AC, 50/60 Hz |
|
Power Consumption (Average / Maximum) |
977 W / 1,217 W
|
1,308 W / 1,548 W
|
AC Current (Maximum) |
30A@100VAC, 20A@240VAC |
|
DC Power Supply |
-48 to -60V DC |
|
DC Current (Maximum) |
25-32A (x2) |
|
Heat Dissipation |
4153 BTU/h /
|
5282 BTU/h /
|
Redundant Power Supplies |
2+1 Redundant / 1+1 Redundant if using high line power Hot Swappable |
|
Fan Trays |
Hot Swappable |
|
Operating Environment and Certifications |
||
Operating Temperature |
32°–104°F (0°–40°C) |
|
Storage Temperature |
-31°–158°F (-35°–70°C) |
|
Humidity |
10%–90% non-condensing |
|
Noise Level |
57.43 dBA |
|
Forced Airflow |
Front to Back |
|
Operating Altitude |
Up to 7400 ft (2250 m) |
|
Compliance |
FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB |
|
Certifications |
ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN, USGv6/IPv6 |
