Chipset |
Intel® C621
|
Mainboard type |
up to 4 x System boards
|
Product Type |

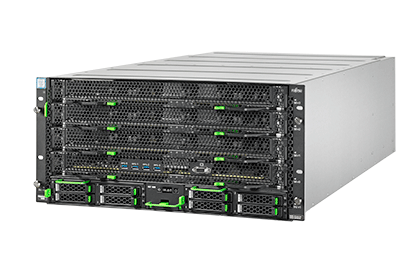

Octo Socket Rack Server
|
Processor |
Intel® Xeon® Gold 6xxx processor, Intel ® Xeon® Platinum 8xxx processor
|
Memory |
32 GB - 36 TB, DIMM (DDR4 / DDR-T for non-volatile memory
modules)
|
Memory protection |
ECC, Advanced ECC, Memory Mirroring support, Address Range
Memory Mirroring support, Rank sparing memory support, Memory
Scrubbing, SDDC+1, ADDDC-MR
|
PCI-Express 3.0 x8 |
12 x Low profile (3slots / IOU, Max. 4 IOUs / Chassis)
|
PCI-Express 3.0 x16 |
4 x Low profile (1slot / IOU, Max. 4 IOUs / Chassis)
|
Storage drive bays |
2.5-inch hot-plug SAS
Max. 24 x 2.5-inch |
I/O controller onboard |
Intel® X540-AT2
2 x 10 Gbit/s Ethernet PQ3000 Management Board (MMB) |
Power supply configuration |
Up to 4 hot-plug power supplies.
Minimum 2 power supplies, redundancy as option. |
Active power (max. configuration) |
5,940 W
|
Weight |
Up to 110 kg
|
Rack (W x D x H) |
445 x 820 x 308 mm
|
Server Management |
Infrastructure and Server Management
|
DC Infrastructure Management |
Infrastructure Manager (ISM)
Essential Advanced Infrastructure Manager (ISM) Essential Advanced, ServerView Suite |
