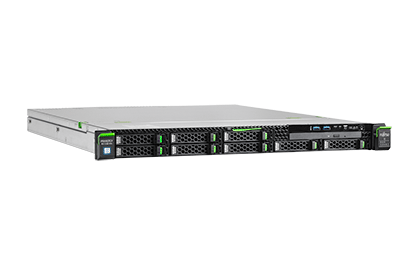

Fujitsu RX1330 M4
Base price
Description
| Chipset |
Intel® C246
|
| Mainboard type |
D3675
|
| Product Type |
Mono Socket Rack Server
|
| Processor |
Intel® Xeon® E-2200 processor family,
Intel® Xeon® E-2100 processor family,
Intel® Celeron® processor, Intel® Core™ i3 processor, Intel® Pentium ® processor
|
| Memory |
4 GB - 128 GB, DIMM (DDR4)
|
| Memory slots |
4 (2 banks with 2 DIMMs each)
|
| Memory protection |
ECC
|
| Drives (optional) |
DVD supermulti, ultraslim, SATA I
|
| PCI-Express 3.0 x4 |
1 x Low profile
|
| PCI-Express 3.0 x8 |
2 x Low profile Length 175mm; PCIe slot
1 supports Modular RAID functions |
| Accessible drive bays |
1 x 5.25/0.4-inch for CD-RW/DVD
Accessible drive bays are not available in case of max. storage drive configuration |
| Optional accessible drives |
Following limitations applies to 10x 2.5-inch HDD base unit: No
CD-RW/DVD, 1x USB 2.0 at the front, no front VGA
|
| Storage drive bays |
4/8 x 2.5-inch hot-plug SATA/SAS (Up to 4x NVMe PCIe SSD
supported) or 4x 3.5-inch hot-plug or 10 x 2.5-inch hot-plug
SATA/SAS
Max. 4x 3.5-inch Max. 8x 2.5-inch Max. 10x 2.5-inch |
| LAN Controller |
Intel® i210 onboard
2 x 10/100/1000 Mbit/s Ethernet (TCP/IP acceleration) |
| Remote Management |
Integrated Remote Management Controller (iRMC S5, 512 MB
attached memory incl. graphics controller)
|
| USB ports |
4 Rear: 2x 3.1 Gen2 for all base units, Front (except 10x 2.5"
HDD): 2x USB 3.1 Gen1
|
| Graphics |
1 x VGA (15-pin) / optional 1 x front VGA (not for 10x 2.5" HDD
base unit)
|
| Management LAN (RJ45) |
Management LAN traffic can be switched to shared onboard Gbit
LAN port, 1 x dedicated management LAN port for iRMC S5
(10/100/1000 Mbit/s)
|
| Trusted Platform Module (TPM) |
Infineon / TPM 1.2 or TPM 2.0 module; TCG compliant (option)
|
| Power supply configuration |
1x standard power supply or1x hot-plug power supply or 2x hot
plug power supplies for redundancy depending on model
|
| Active power (max. configuration) |
264 W
|
| Weight |
up to 13 kg
|
| Rack (W x D x H) |
482.6 mm (Bezel) / 435.4 mm (Body) x 572 x 42.8 mm
|
| DC Infrastructure Management |
Infrastructure Manager (ISM)
Essential Advanced |
| Server Management |
Infrastructure Manager (ISM)
Essential Advanced, ServerView Suite |
