Chipset |
Intel® C621A
|
Mainboard type |
D3890
|
Product Type |

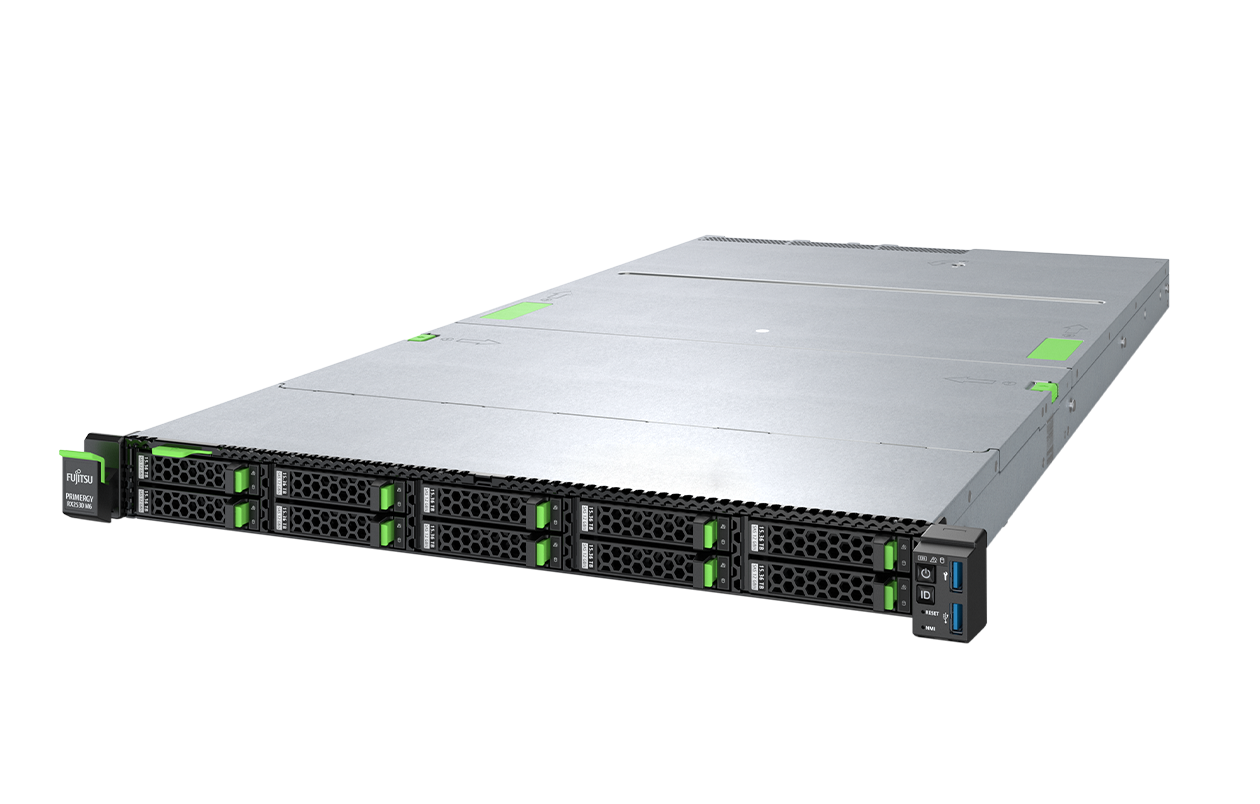

Dual Socket Rack Server
|
Processor |
Intel® Xeon® Silver 43xx processor, Intel® Xeon® Gold 53xx processor, Intel® Xeon® Gold 63xx processor, Intel ® Xeon® Platinum 83xx processor
|
Memory |
8 GB - 10 TB, DIMM (DDR4 RDIMM, LRDIMM and Intel®
Optane™ PMem)
|
Memory slots |
32 (16 DIMMs per CPU, 8 channels with 2 slots per channel)
|
Memory protection |
ECC, Memory Scrubbing, SDDC, ADDDC (Adaptive Double DRAM Device
Correction), Memory Mirroring support
|
Drives (optional) |
DVD supermulti, ultraslim, SATA I
|
PCI-Express 4.0 x8 |
1 x Low profile
|
PCI-Express 4.0 x16 |
3 x Low profile (2nd processor required for slot 3); 1x16 if fh
slot selected
|
Accessible drive bays |
1 x 5.25/9.5mm for DVD-RW/Blu-ray
|
Optional accessible drives |
2x 2.5-inch hot-plug SAS/SATA rear option
Ultra slim 9.5mm optical drive (optional) n/a Not for 10x 2.5-inch/32 x EDSFF base unit. All possible options described in relevant system configurator. |
Storage drive bays |
up to 4 x 3.5-inch, 8 x 2.5-inch, 10 x 2.5-inch or 32 x EDSFF
base unit
up to 8x 2.5" (SFF) hot plug drives (SAS/SATA) up to 4x 3.5" (LFF) hot plug drives (SAS/SATA) up to 32x EDSFF hot plug drives (PCIe SSD) up to 10x 2.5" (SFF) hot plug drives (SAS/SATA/PCIe SSD) |
LAN Controller |
Dynamic LoM via OCP slot; OCPv3 compliant, Optional OCP
adaptors:, 4 x 1 Gbit/s Ethernet (RJ45), 2 x 10 Gbit/s Ethernet
(RJ45), 4 x 10 Gbit/s Ethernet (RJ45), 2 x 10 Gbit/s SFP+, 4 x
10 Gbit/s SFP+, 2 x 25 Gbit/s QSFP28, 2x 100 Gbit/s QSFP28
|
Remote Management |
Integrated Remote Management Controller (iRMC S5, 512 MB
attached memory incl. graphics controller), IPMI 2.0 compatible
|
USB ports |
5 x USB 3.0 (2x front, 2x rear, 1x internal)
|
Graphics |
2 x VGA (thereof 1x front optional - not for base unit with 10x
2.5” and 32x EDSFF drives)
|
Management LAN (RJ45) |
1 x dedicated management LAN port for iRMC S5 (10/100/1000
Mbit/s)
|
Trusted Platform Module (TPM) |
Infineon / TPM 2.0 module; TCG compliant (option)
|
Power supply configuration |
1 x hot-plug power supply or 2 x hot-plug power supply for
redundancy
|
Active power (max. configuration) |
1,848 W
|
Weight |
max. 18.2 kg
|
Rack (W x D x H) |
482.2 mm (Bezel) / 435 mm (Body) x 807.45 x 42.7 mm
|
Mounting Depth Rack |
836.95 mm
|
DC Infrastructure Management |
Infrastructure Manager (ISM)
Essential Edition Advanced Edition |
Server Management |
Infrastructure Manager (ISM)
Essential Edition Advanced Edition, ServerView Suite |
