Chipset |
Intel® C624
|
Mainboard type |
D3384-B
|
Product Type |

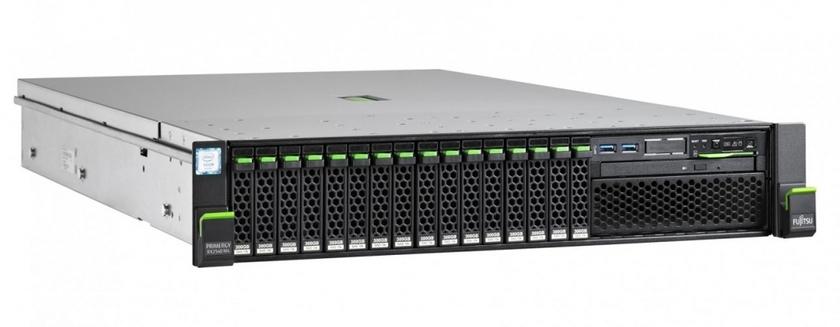

Dual Socket Rack Server
|
Processor |
Intel® Xeon® Bronze 3xxx processor, Intel® Xeon® Silver 4xxx processor, Intel® Xeon® Gold 5xxx processor, Intel® Xeon® Gold 6xxx processor, Intel ® Xeon® Platinum 8xxx processor
1 - 2 |
Memory |
8 GB - 7.5 TB, DIMM (DDR4 / DDR-T for non-volatile memory
modules)
|
Memory slots |
24 (12 DIMMs per CPU, 6 channels with 2 slots per channel)
|
Memory protection |
Advanced ECC, Memory Scrubbing, SDDC, Rank sparing memory
support, Memory Mirroring support
|
Drives (optional) |
DVD supermulti, ultraslim, SATA I
RDX Drive, 100 MB/s, 320 GB, 500 GB, 1 TB, 2 TB, USB 3.0 LTO7HH Ultrium, 300 MB/s, 2,500 GB, SAS 6Gb/s LTO7HH Ultrium, 300 MB/s, SAS 6Gb/s |
PCI-Express 3.0 x8 |
3 x Low profile (2nd processor required for slot 4)
|
PCI-Express 3.0 x16 |
3 x Low profile (2nd processor required for slot 5 and 6)
|
Accessible drive bays |
1 x 5.25/0.4-inch for CD-RW/DVD
|
Optional accessible drives |
ODD 5.25" possible
ODD 5.25" NOT possible All possible options described in relevant system configurator. |
Storage drive bays |
3.5-inch or 2.5-inch hot-plug SAS/SATA
4 x 3.5-inch hot-plug SAS/SATA 12 x 3.5-inch hot-plug SAS/SATA 16 x 2.5-inch hot-plug SAS/SATA 8 x 2.5-inch hot-plug SAS/SATA 24 x 2.5-inch hot-plug SAS/SATA |
LAN Controller |
2 x 1 Gbit/s onboard, Optional DynamicLoM OCP adaptors:, 4 x 1
Gbit/s Ethernet (RJ45), 2 x 10 Gbit/s Ethernet (RJ45), 2 x 10
Gbit/s SFP+, 4 x 10 Gbit/s SFP+
|
Remote Management |
Integrated Remote Management Controller (iRMC S5, 512 MB
attached memory incl. graphics controller), IPMI 2.0 compatible
|
USB ports |
5 x USB 3.0 (2x front, 2x rear, 1x internal) - for base units
with max. drives count: 1x USB 2.0 front only
|
Graphics |
2 x VGA (thereof 1x front optional)
|
Management LAN (RJ45) |
1 x dedicated management LAN port for iRMC S5 (10/100/1000
Mbit/s), Management LAN traffic can be switched to shared
onboard LAN controller port, speed and connector is related to
installed interface card.
|
Trusted Platform Module (TPM) |
Infineon / TPM 1.2 or TPM 2.0 module; TCG compliant (option)
|
Power supply configuration |
1 x hot-plug power supply or 2x hot-plug power supply for
redundancy
|
Active power (max. configuration) |
715 W
|
Weight |
up to 25 kg
|
Rack (W x D x H) |
482.4 mm (Bezel) / 445 mm (Body) x 770 x 86.6 mm
|
Mounting Depth Rack |
740 mm
|
DC Infrastructure Management |
Infrastructure Manager (ISM)
Essential Edition Advanced Edition |
Server Management |
Infrastructure Manager (ISM)
Essential Edition Advanced Edition, ServerView Suite |
