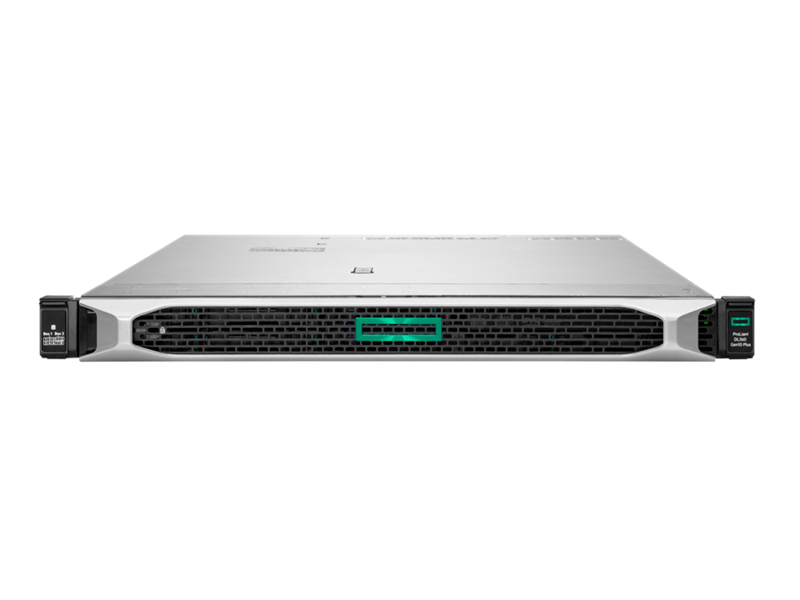

HPE ProLiant DL360 Gen10 Plus

Processor Type Intel®

Processor family Intel® Xeon® Scalable 8300 series
Intel® Xeon® Scalable 6300 series

Processor core available 8 to 40 core, depending on processor

Processor cache 12 - 60 MB L3, depending on processor

Maximum memory 6.0 TB per socket, when populated with 256 GB DDR4 and 512 GB Persistent Memory

Memory slots 16 DIMM slots per socket

Memory type HPE DDR4 SmartMemory

Persistent Memory Type Optional: Intel® Optane™ Persistent Memory for HPE

Persistent Memory Media Capacity Optional: 128 to 256 GB

NVDIMM type Optional: Intel® Optane™ Persistent Memory for HPE

NVDIMM capacity Optional: 128 to 512 GB

Memory protection features HPE Fast Fault Tolerant Memory
Advanced ECC Memory
Online Spare Memory
Mirrored Memory

Drive supported Up to 4 LFF SAS/SATA HDDs or SSDs
Up to 10 SFF SAS/SATA HDDs or SATA/SAS/NVMe U.2 or U.3 SDDs, depending on model

Infrastructure management Included - HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download)
Optional - HPE iLO Advanced, and HPE OneView Advanced

Expansion slots Maximum 3 PCIe Gen4, for detail descriptions please see QuickSpecs

Network controller Wide range of speeds, cabling, chipsets and form factors. Please see QuickSpecs for network card choices

Storage controller Included - Embedded SATA controller (AHCI or SR100i modes)
Optional - Variety of protocols -including NVMe-, port count, array utilities, and form factors. Please see QuickSpecs for storage controllers selection

Warranty 3/3/3: Server Warranty includes three years of parts, three years of labor, and three years of onsite support coverage. Additional information regarding worldwide limited warranty and technical support is available at: http://h20564.www2.hpe.com/hpsc/wc/public/home. Additional HPE support and service coverage, to supplement the product warranty, is available. For more information, visit http://www.hpe.com/support

Processor Name 3rd Generation Intel® Xeon® Scalable Processor Family

Processor number 1 or 2

Processor speed 3.6 GHz, maximum depending on processor

Memory, standard 4 TB (16x 256 GB) RDIMM per socket
6 TB (8x 256 GB RDIMM and 8x 512 GB Persistent Memory) per socket, depending on processor model

Security UEFI Secure Boot and Secure Start support
Intel® Software Guard Extensions (SGX) support
Immutable Silicon Root of Trust
Optional Trusted Supply Chain, iLO Security modes, TPM, Chassis Intrusion detection and Bezel Locking kits

Form factor 1U Rack

Weight SFF: 28.74 lb to 35.86 lb
LFF: 30.36 lb to 37.00 lb

Weight SFF: 13.04 kg to 16.27 kg
LFF: 13.77 kg to 16.78 kg

Minimum dimensions ( H x W x D) SFF: 1.69 x 17.11 x 30.30 in
LFF: 1.69 x 17.11 x 31.50 in

Minimum dimensions ( H x W x D) SFF: 4.29 x 43.46 x 76.96 cm
LFF: 4.29 x 43.46 x 80.01 cm
