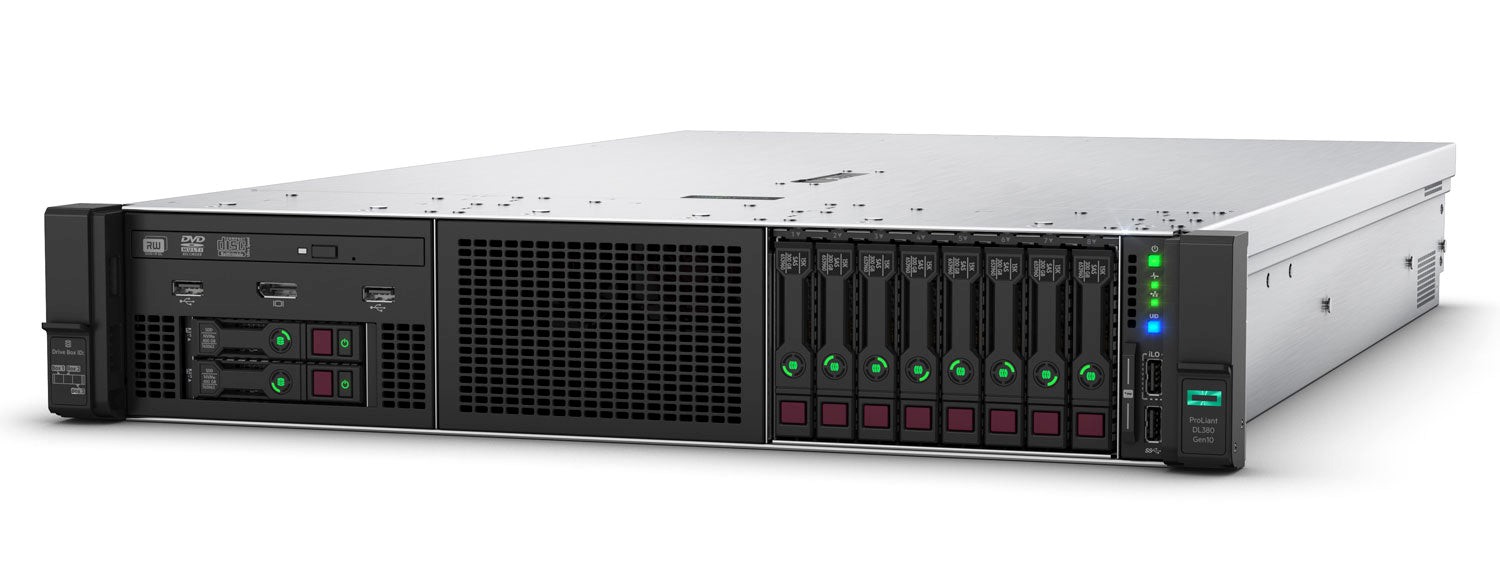

HPE ProLiant DL380 Gen10

Processor Type Intel

Processor family Intel® Xeon® Scalable 8100/8200 series Intel® Xeon® Scalable 6100/6200 series Intel® Xeon® Scalable 5100/5200 series Intel® Xeon® Scalable 4100/4200 series Intel® Xeon® Scalable 3100/3200 series

Processor core available 4 to 28 core, depending on model

Processor cache 8.25 - 38.50 MB L3, depending on processor model

Maximum memory 3.0 TB with 128 GB DDR4, depending on processor model; 6.0 TB with HPE 512GB 2666 Persistent Memory Kit, depending on processor model

Memory slots 24 DIMM slots

Memory type HPE DDR4 Smart Memory with optional Intel® Optane™ persistent memory 100 series for HPE, depending on processor model selected. Intel Optane Persistent Memory for HPE only supported on select 2nd Generation Intel Scalable Series Processors, to include: 82xx, 62xxR, 62xx, 52xxR, 52xx series processors, and the 4215R and 4215 processors.

NVDIMM type HPE NVDIMM-N *Only available on 1st Generation Intel® Xeon® Scalable Processors

NVDIMM rank Single rank

NVDIMM capacity 16 GB

Drive supported 8 or 12 LFF SAS/SATA/SSD 8, 10, 16, 18 or 24 SFF SAS/SATA/SSD; 2 M.2 SATA SSD standard on primary riser, depending on configuration; 6 SFF rear drive optional or 3 LFF rear drive optional and 2 SFF or 2 Dual UFF rear drive optional; 20 SFF NVMe optional; NVMe support via Express Bay will limit maximum drive capacity

Infrastructure management HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download) (standard) HPE iLO Advanced, and HPE OneView Advanced (optional; requires licenses)

System fan features Hot-plug redundant fans, standard

Expansion slots 8, for detailed descriptions reference the QuickSpecs

Network controller HPE 1 Gb 331i Ethernet adapter 4-ports per controller and/or optional HPE FlexibleLOM, depending on model

Storage controller 1 HPE Smart Array S100i and/or 1 HPE Smart Array P408i-a and/or 1 HPE Smart Array P816i-a and/or 1 HPE Smart Array E208i-a, depending on model

Warranty 3/3/3 - Server Warranty includes three years of parts, three years of labor, three years of onsite support coverage. Additional information regarding worldwide limited warranty and technical support is available at: http://h20564.www2.hpe.com/hpsc/wc/public/home. Additional HPE support and service coverage for your product can be purchased locally. For information on availability of service upgrades and the cost for these service upgrades, refer to the HPE website at http://www.hpe.com/support

Processor Name Intel

Processor number 1 or 2

Processor speed 3.9 GHz, maximum depending on processor

Memory, standard 3.0 TB (24 X 128 GB) LRDIMM; 6.0 TB (12 X 512 GB) Persistent Memory

Security Optional locking Bezel Kit, Intrusion Detection Kit, and HPE TPM 2.0

Form factor 2U

Weight 32.6 lb

Weight 14.76 kg

Minimum dimensions ( H x W x D) 17.54 x 28.75 x 3.44 in

Minimum dimensions ( H x W x D) 44.55 x 73.03 x 8.74 cm
