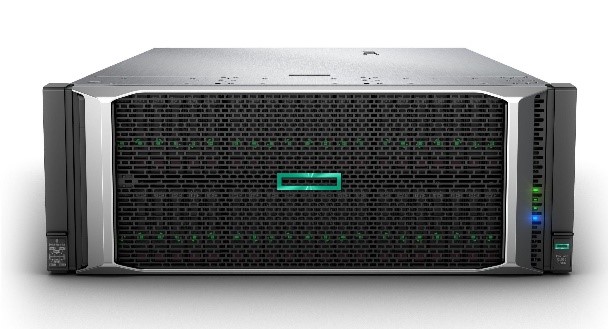

HPE ProLiant DL580 Gen10

Processor Type Intel

Processor family Intel® Xeon® Scalable 8200 series Intel® Xeon® Scalable 6200 series Intel® Xeon® Scalable 5200 series Intel® Xeon® Scalable 8100 series Intel® Xeon® Scalable 6100 series Intel® Xeon® Scalable 5100 series

Processor core available 28 or 26 or 24 or 22 or 20 or 18 or 16 or 14 or 12 or 10 or 8 or 6 or 4, per processor, depending on model

Processor cache 13.75 MB L3 or 16.50 MB L3 or 19.25 MB L3 or 22.00 MB L3 or 24.75 MB L3 or 27.50 MB L3 or 30.25 MB L3 or 33.00 MB L3 or 35.75 MB L3 or 38.50 MB L3, per processor, depending on model

Maximum memory 6.0 TB with 128 GB DDR4, depending on processor model
12.0 TB with 512 GB Persistent Memory, depending on processor model

Memory slots 48 DIMM slots maximum

Memory type HPE DDR4 SmartMemory and Intel® Optane™ persistent memory 100 series for HPE

Drive supported 48 maximum

Infrastructure management HPE iLO Standard with Intelligent Provisioning (embedded) and HPE OneView Standard (requires download) are included Optional: HPE iLO Advanced, HPE iLO Advanced Premium Security Edition and HPE OneView Advanced (optional require licenses)

System fan features 12 (11+1) Hot plug redundant standard

Expansion slots 16 maximum, for detailed descriptions reference the QuickSpecs

Network controller Optional FlexibleLOM

Storage controller HPE Smart Array S100i or HPE Smart Array Controllers, depending on model

Warranty 3/3/3 - Server Warranty includes three years of parts, three years of labor, three years of onsite support coverage. Additional information regarding worldwide limited warranty and technical support is available at: http://h20564.www2.hpe.com/hpsc/wc/public/home. Additional HPE support and service coverage for your product can be purchased locally. For information on availability of service upgrades and the cost for these service upgrades, refer to the HPE website at http://www.hpe.com/support

Processor Name Intel® Xeon® Scalable processors

Processor number 4 or 3 or 2 or 1

Processor speed 3.6 GHz, maximum depending on processor

Memory, standard 6.0 TB (48 X 128 GB) LRDIMM;
12.0 TB (24 X 512 GB) Intel® Optane™ persistent memory 100 series for HPE

Included hard drives None ship standard

Form factor Rack (4U)

Weight 114 lb

Weight 51.71 kg

Minimum dimensions ( H x W x D) 6.88 x 17.54 x 29.60 in

Minimum dimensions ( H x W x D) 17.47 x 44.55 x 75.18 cm
