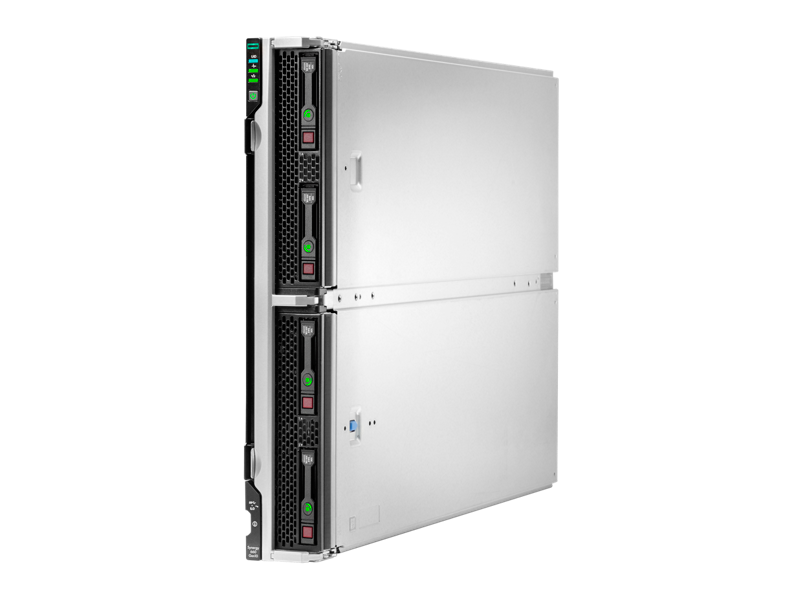

HPE Synergy 660 Gen10 Compute Module

Processor Type Intel Xeon Scalable

Processor family Intel® Xeon® Scalable Family processors Choice of Generation 1 or 2:
Series 8100/8200
Series 6100/6200
Series 5100/5200

Maximum memory 6 TB with 128 GB DIMMs in 48 DIMM slots

Memory slots 48 DIMM slots Maximum

Memory protection features Advanced ECC Memory Mirroring Mode Memory Online Spare Mode

Compute nodes HPE Synergy 660 Gen10 Compute Modules

Processor Name 2 or 4 selectable:
Intel® Xeon® Scalable 8100/8200 series
Intel® Xeon® Scalable 6100/6200 series
Intel® Xeon® Scalable 5100/5200 series
All processors must match.

Processor core available 28
26
24
22
20
18
16
14
12
10
8
6 or
4 cores per processor

Processor speed 3.6 GHz
3.5 GHz
3.4 GHz
3.2 GHz
3.0 GHz
2.7 GHz
2.6 GHz
2.5 GHz
2.4 GHz
2.3 GHz
2.1 GHz or
2.0 GHz

Processor number 2 or 4

Processor cache Up to 38.5 Mb

Memory type HPE DDR4-2666 SmartMemory(Gen1) or
HPE DDR4-2933 SmartMemory(Gen2) available

Memory, standard Two to forty-eight (48), depending on model.

NVDIMM rank Single, Dual, Quad and Octal

Security TPM and iLO5 Root of Trust

Drive description Optional: 0 to 4 SFF SAS/SATA/NVMe SSDs AND/OR up to 8 uFF Flash AND/OR up to 4 internal M.2 drives

Included hard drives 0 to 4 configurable

Expansion slots (6) 3x 16 PCIe 3.0 Slots for Mezzanine Options (for detail descriptions reference the QuickSpecs)

Infrastructure management HPE Synergy Composer powered by HPE OneView 3.1 and iLO Advanced (standard) with all Synergy solutions

Power supply type (6) Frame-based

System fan features (6) Frame-based

Form factor (fully configured) 10 U full height, single-wide

Warranty 3/3/3 Server Warranty includes three years of parts, three years of labor, three years of onsite support coverage. Additional information regarding worldwide limited warranty and technical support is available at: www.hpe.com/services/support. Additional Hewlett Packard Enterprise support and service coverage for your product can be purchased locally. For information on availability of service upgrades and the cost for these service upgrades, refer to www.hpe.com/services/support.

Detailed product description HPE Synergy 660 Gen10 Compute Modules

Weight 30.31 lbs

Weight 13.75 kg

Minimum dimensions ( H x W x D) 2.50 x 16.94 x 23.59 in

Minimum dimensions ( H x W x D) 6.35 x 43.03 x 59.92 cm
