Parameters | Model |

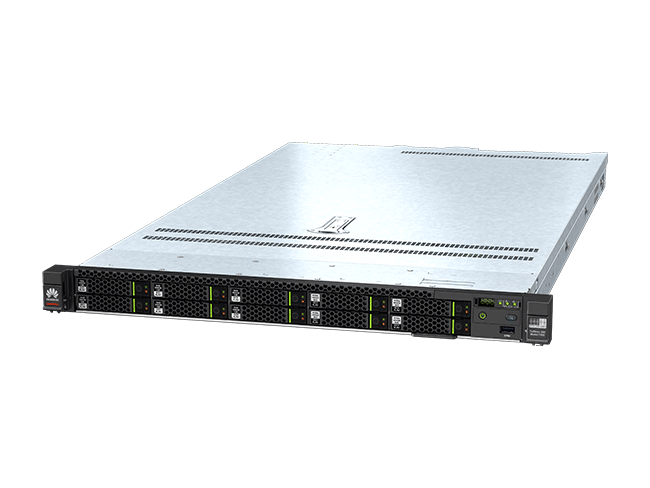

Form Factor | 1U 2-socket rack server |
Processors | 2 Kunpeng 920 processors |
Memory | 32 DDR4-2933 DIMMs |
Internal Storage | Up to 10 x 2.5'' SAS/SATA HDDs, or 8 x 2.5'' NVMe SSDs |
RAID |
RAID 0, 1, 5, 6, 10, 50, or 60
Supercapacitor for power failure protection |
LOM Network Ports | 2 LOM NICs (each NIC: 4 GE electrical ports, or 4 x 10GE optical ports, or 4 x 25GE optical ports) |
PCIe Expansion | Up to 2 PCIe 4.0 x16 + 1 PCIe 4.0 x8 slot |
Power Supply Units | 2 x 900 W or 2000 W hot-swappable AC PSUs, supporting 1+1 redundancy |
Power Supply | 100V to 240V AC; 240V DC |
Fan Modules | 7 hot-swappable fan modules, supporting N+1 redundancy |
Operating Temperature | 5ºC to 35ºC (41ºF to 95ºF) |
Dimensions (H x W x D) | 43 mm x 435.6 mm x 790 mm |
