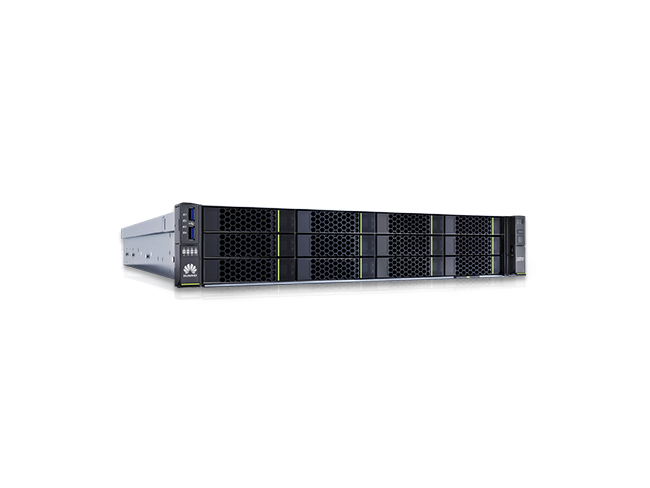

Huawei 2280 Balanced

No image set
Base price
Description
Parameters Model
Form Factor 2U rack server
Processors 2 Kunpeng 920 processors
Memory 32 DDR4-2933 DIMM slots
Internal Storage 12-drive model:
Front: 12 x 3.5-inch SAS/SATA drives or SSDs; Rear: 4 x 3.5-inch SAS/SATA drives or SSDs
25-drive model:
Front: 25 x 2.5-inch SAS/SATA drives or SSDs or or 16 x 2.5-inch NVMe SSDs; Rear: 2 x 2.5-inch SAS/SATA drives or SSDs
RAID RAID 0, 1, 5, 6, 10, 50, or 60
Supercapacitor for power failure protection
LOM Network Ports 2 flexible LOM cards, supporting up to 8 x GE electrical ports, 8 x 25 GE/10 GE optical ports, or 4 x GE electrical ports + 4 x 25 GE/10 GE optical ports
PCIe Expansion Up to 8 PCIe 4.0 x8, or 3 PCIe 4.0 x16 + 2 PCIe 4.0 x8 slots
Power Supply Units 2 x 1,500W or 2,000W hot-swappable AC PSUs, and supporting 1+1 redundancy
Power Supply 100V to 240V AC; 240V DC
Fan Modules 4 hot-swappable fan modules in N+1 redundancy
Operating Temperature 5ºC to 40ºC (41ºF to 104ºF)
Dimensions (H x W x D) 86.1 mm x 447 mm x 790 mm (3.39 in. x 17.60 in. x 31.10 in.)
