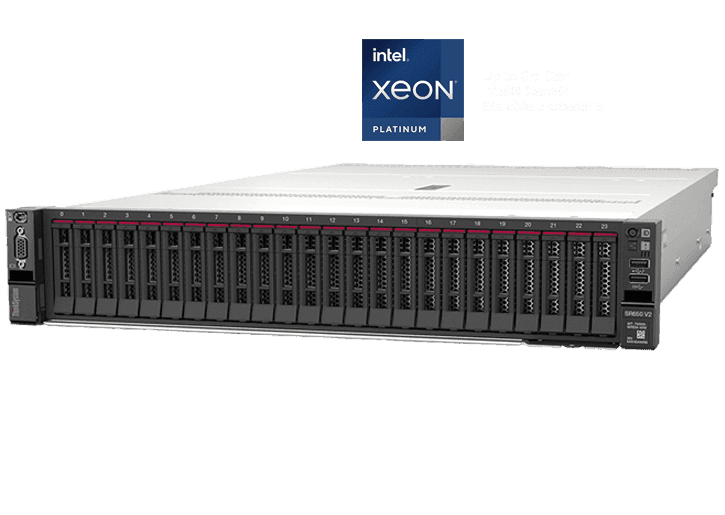

Lenovo ThinkSystem SR650/SR650 V2

No image set
Base price
Description
Form Factor/Height 2U rack server
Processors Up to 2x 3rd generation Intel® Xeon® Scalable processors, up to 40 cores, up to 270W TDP
Drive Bays Up to 20x 3.5-inch or 40x 2.5-inch drives; Up to 32x NVMe drives supported with NVMe switch adapters; 2x M.2 boot drives (RAID 1); 2x 7mm boot drives in rear (RAID 1)
Memory 32x DDR4 memory slots; Maximum 8TB using 32x 256GB 3DS RDIMMs; Supports up to 16x Intel® Optane™ Persistent Memory 200 Series modules (PMem)
Expansion Slots Up to 8x PCIe 4.0 slots, 1x OCP 3.0 slot, 1x cabled HBA/RAID adapter that doesn't occupy a standard PCIe slot
GPUs Up to 8x single-width GPUs or 3x double-width GPUs
Network Interface LOM adapter installed in the OCP 3.0 slot; PCIe adapters
Ports Front: 1x USB 3.1 G1, 1x USB 2.0 with XClarity Mobile support, 1x VGA (optional), 1x external diagnostics handset port
Rear: 3x USB 3.1 G1, 1x VGA, 1x RJ-45 (management), 1x Serial port (optional)
HBA/RAID Support SW RAID standard; optional HW RAID with/without cache or 8/16-port SAS HBAs
Power Dual redundant power supplies (up to 1800W Platinum)
Systems Management Lenovo XClarity Controller
OS Support
Microsoft, SUSE, Red Hat, VMware. Visit lenovopress.com/osig for more information.
Limited Warranty 1-year and 3-year customer replaceable unit and onsite service, next business day 9x5; optional service upgrades
