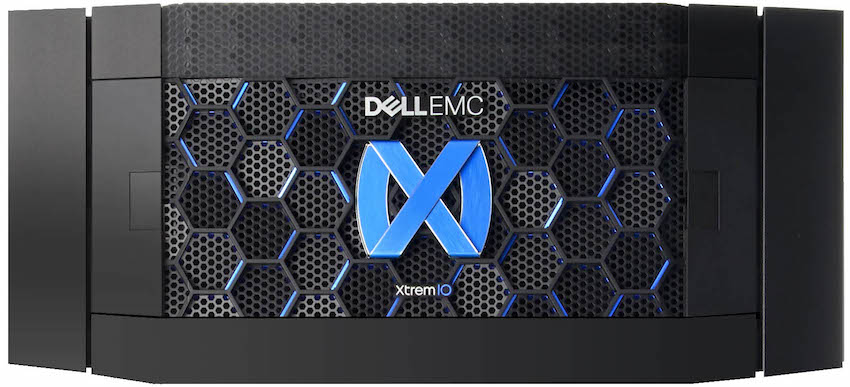

EMC XtremIO X2

Base price
Description

1 Brick Cluster

2 Bricks Cluster

3 Bricks Cluster

4 Bricks Cluster

System Specifications

Active-Active Controllers

2

4

6

8

SSD enclosures

1

2

3

4

Number of SSDs (2TB Drives)

18-721

36-144

54-216

72-288

Number of SSDs 2 (4TB Drives)

18-60

36-120

54-180

72-240

Cable mgmt. ducts 3

1

1

2

2

InfiniBand Switches

0

2

2

2

Power Socket Number/Type (internal to rack)

6 x IEC C14

16 x IEC C14

22 x IEC C14

28 x IEC C14

Weight 4 (including rack)

293Kg/646lb

400Kg/882lb

490Kg/1080lb

580Kg/1278lb

Weight 4 (excluding rack)

95Kg/209lb

202Kg/445lb

292Kg/644lb

382Kg/842lb

Rack Space (incl. CMD)

5U

11U

16U

20U

Performance (100% random IOs, no caching, on preconditioned & prefilled arrays)

IOPS 100% read (8K blocks)

430,000

860,000

1,290,000

1,720,000

IOPS 70% read, 30% write (8K blocks)

220,000

440,000

660,000

880,000

Average Latency (ms)

0.5

0.5

0.5

0.5

Max. Bandwidth (GB/s)

6

12

18

24

Host Connectivity (Default/iSCSI only config 5 )

Fibre Channel Ports (16Gbps)

4

8

12

16

iSCSI Ethernet Ports (10Gbps)

4-8

8-16

12-24

16-32

Management

Ethernet Ports (10Gbps)

2

2

2

2

Management IP Addresses Required

2+1 (XMS)

2+1 (XMS)

2+1 (XMS)

2+1 (XMS)

XMS Management Server

A single XMS (physical server or VM) manages multiple XtremIO arrays, requires IP address

2TB drives

X2-T

X2-R

X2-T Single Brick

1 Brick Cluster

2 Bricks Cluster

3 Bricks Cluster

4 Bricks Cluster

Raw Capacity

34.6TB - 69.1TB
31.4TiB - 62.9TiB

34.6TB - 138.2TB
31.4TiB - 125.7TiB

69.1TB - 276.5TB
62.9TiB - 251.5TiB

103.7TB - 414.7TB
94.3TiB - 377.2TiB

138.2TB - 553.0TB
125.7TiB - 502.9TiB

Usable Capacity 6

27.9TB - 61.5TB
25.4TiB - 56.2TiB

27.9TB - 123.7TB
25.4TiB - 112.5TiB

55.8TB - 247.4TB
50.8TiB - 225TiB

83.7TB - 371.1TB
76.2TiB - 337.5TiB

111.6TB - 494.8TB
101.6TiB - 450TiB

Effective Capacity 7

369 TB

738 TB

1476 TB

2214 TB

2958 TB

Power Consumption (steady state)

1400-1550VA

1400-1700VA

3000-3510VA

4420-5200VA

5850-6900VA

Cooling Requirements

4,800-5,300 BTU/Hr

4,800-5,800 BTU/Hr

10,240-12,000 BTU/Hr

15,090-17,750 BTU/Hr

20,000-23,550 BTU/Hr

CPU

Haswell, dual socket
(48 cores)

Haswell, dual socket
(48 cores)

Haswell, dual socket
(96 cores)

Haswell, dual socket
(144 cores)

Haswell, dual socket
(192 cores)

RAM

1.28TB or 2TB8

2TB

4TB

6TB

8TB

4TB drives

X2-R

1 Brick Cluster

2 Bricks Cluster

3 Bricks Cluster

4 Bricks Cluster

Raw Capacity

69.1TB - 230TB
62.8TiB - 209.5TiB

138TB - 460TB
125.8TiB - 419TiB

207.3TB - 690TB
188.4TiB - 628.5TiB

276.4TB - 920TB
251.2TiB - 838TiB

Usable Capacity 6

56.4TB - 203.7TB
51.3TiB - 185.3TiB

112.8TB - 407.4TB
102.6TiB - 370.6TiB

169.2TB - 611.1TB
153.9TiB - 555.9TiB

225.6TB - 841.8TB
205.2TiB - 741.2TiB

Effective Capacity 7

1220 TB

2440 TB

3661 TB

4881 TB

Power Consumption (steady state)

1400-1700VA

3000-3510VA

4420-5200VA

5850-6900VA

Cooling Requirements

4,800-5,800 BTU/Hr

10,240-12,000 BTU/Hr

15,090-17,750 BTU/Hr

20,000-23,550 BTU/Hr

CPU

Haswell, dual socket
(48 cores)

Haswell, dual socket
(96 cores)

Haswell, dual socket
(144 cores)

Haswell, dual socket
(192 cores)

RAM

2TB

2TB

4TB

6TB

X2-S

1 Brick Cluster

2 Bricks Cluster

3 Bricks Cluster

4 Bricks Cluster

Raw Capacity

7.2TB - 28.8TB
6.55TiB - 26.2TiB

14.4TB - 57.6TB
13.1TiB - 52.4TiB

21.6TB - 86.4TB
19.7TiB - 78.6TiB

28.8TB - 115.2TB
26.2TiB - 104.8TiB

Usable Capacity 6

5.4TB - 24TB
4.9TiB - 22TiB

11TB - 49TB
10TiB - 45TiB

16TB - 74TB
15TiB - 67TiB

21TB - 99TB
20TiB - 90TiB

Effective Capacity 7

132 TB

271 TB

406 TB

543 TB

Power Consumption (steady state)

1300-1580VA

2890-3410VA

4420-5200VA

5510-6550VA

Cooling Requirements

4,440-5,400 BTU/Hr

9,870-11,640 BTU/Hr

14,340-17,070 BTU/Hr

18,810-22,360 BTU/Hr

CPU

Haswell, dual socket
(48 cores)

Haswell, dual socket
(96 cores)

Haswell, dual socket
(144 cores)

Haswell, dual socket
(192 cores)

RAM

768GB

1.54TB

2.30TB

3.07TB

X2 Brick Array Controller

AC Input Voltage 9

90-264V, 47-63Hz single phase

Rack Space

1U

Dimensions (height x width x depth)

43.2mm x 438mm x 756mm (1.7” x 17.25” x 29.75”)

Weight

16kg (35 lbs.)

Power Consumption (typical, @25C) [X2-S/X2-R]

450VA / 500VA

Power Socket Number/Type

2 x IEC C14

X2 Brick Disk Array Enclosure (DAE)

AC Input Voltage 9

100-240V, 50-60Hz single phase

Rack Space

2U

Dimensions (height x width x depth)

88.9mm x 438mms x 927.1mm (3.5” x 17.25” x 36.5”)

Weight

44kg (97 lbs.)

Power Consumption (typical, @25C ,18 to 72 SSDs)

270VA-550VA

Power Socket Number/Type

2 x IEC C14

X2-R InfiniBand Switch (Two Included with Multi X-Brick Systems)

Ports

36

AC Input Voltage 9

100-240V, 50-60Hz

Rack Space

1U

Dimensions (height x width x depth)

43.7mm x 428mm x 686mm (1.72” x 16.84” x 27”)

Weight

11.5kg (25 lbs.)

Power Consumption (typical, @25C)

106VA

Power Socket Number/Type

2 x IEC C14

X2-S InfiniBand Switch (Two Included with Multi X-Brick Systems)

Ports

12

AC Input Voltage 9

100-240V, 50-60Hz

Rack Space

1U

Dimensions (height x width x depth)

43.7mm x 200mm x 399mm (1.72” x7.9” x 15.7”)

Weight

3.2kg (7.1 lbs.)

Power Consumption (typical, @25C)

100VA

Power Socket Number/Type

2 x IEC C14

Environmental

Operating Temperature

5° to 40°C

Non-Operating Temperature

-20° to 50°C

Operating Relative Humidity

10% to 90% (non-condensing)

Non-Operating Relative Humidity

5% to 90% (non-condensing)

Regulatory and Compliance 10

ASHRAE A3 and See Note 10.

System AC Input Voltage 9
(single phase, 3-phase WYE, 3-phase Delta)

200-240V, 50-60Hz

1 X2-T can support up to 36 SSDs
2 4TB drives are supported in X2-R SSD enclosures, up to 60 X 4TB SSDs per enclosure
3 CMD - Cable Management Duct. optional.
4 These are X2-R values. For X2-S multi-brick weight subtract 16Kg (single bricks weigh the same).
5 Cluster can be configured to have only iSCSI connections and no FC connections
6 Usable capacity is the amount of unique, non-compressible data that can be written into the array.
7 Effective capacity includes the benefits of thin provisioning, inline global deduplication, inline compression, and spaceefficient copies. Datasheet numbers are a representative example at 6:1 and will vary based on each customer’s specific application environment and use of the XtremIO array.
8 Depends on ship date
9 Note that RPQ process is required in order to work under low line voltage input. 10 DELL EMC Information Technology Equipment is compliant with all currently applicable regulatory requirements for Electromagnetic Compatibility, Product Safety, and Environmental Regulations where placed on market. Detailed regulatory information and verification of compliance is available at the Dell Regulatory Compliance website. http://dell.com/regulatory_compliance
