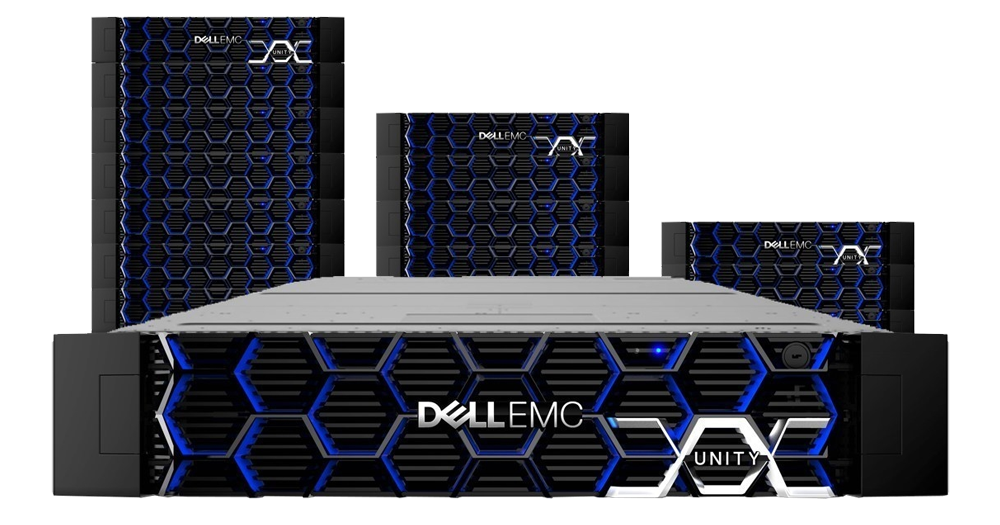

The ultimate in simplicity & all-flash value
The Dell EMC Unity™ All-Flash product line sets new standards for storage with compelling simplicity, modern design, flexible deployments and affordable prices– to meet the needs of resource-constrained IT professionals in large or small companies.
If you are looking for raw power and absolute simplicity in a small footprint, if you are cost-conscious and need the best from the best, Dell EMC All-Flash storage is for you. Designed for flash with all-inclusive software, these systems deliver consistent performance with low response times.
Architecture
Based on the powerful family of Intel E5-2600 processors, Dell EMC Unity All Flash storage systems implement an integrated architecture for block, file, and VMware VVols with concurrent support for native NAS, iSCSI, and Fibre Channel protocols. Each system leverages dual storage processors, full 12 Gb SAS back end connectivity and Dell EMC’s patented multicore architected operating environment to deliver unparalleled performance & efficiency. Additional storage capacity is added via Disk Array Enclosures (DAEs) and for additional performance, online & offline controller upgrades are available.
*DC products comply with NEBS Level 3 and ETSI requirements and are tested to the following standards: GR-63-CORE, GR-1089-CORE & ETSI EN 300 386, EN 300 132- 2, EN 300 753, EN 300 019
Physical Specifications
|
350F |
450F |
Min/Max Drives |
6/150 |
6/250 |
Array Enclosure |
A 2U Disk Processor Enclosure (DPE) with twenty five 2.5” drives |
|
Drive Enclosure (DAE - Disk Array Enclosure) |
All models support 2U twenty five drive and 3U eighty drive trays for 2.5” drives |
|
Standby Power System |
All systems are powered by 2 power supplies (PS) per DPE/DAE. Each power supply can provide power to the entire module if the peer PS has been removed or is faulted. DPE power during a power failure is provided by a Battery Back Up (BBU) module. BBU is located within the SP enclosure and provides power to a single module (power zone) |
|
RAID Options |
1/0, 5, 6 |
|
CPU per Array |
2 x Intel 6-core, 1.7GHz |
2 x Intel 10-core, 2.2GHz |
Memory per Array |
96 GB |
128 GB |
Max IO Modules per Array* |
4 |
4 |
Embedded SAS IO Ports per Array |
4 x 4 lane 12Gb/s SAS ports for BE (back end) Connection |
4 x 4 lane 12Gb/s SAS ports for BE Connection |
Optional SAS IO ports per Array |
NA |
NA |
Base 12 Gb/s SAS BE Buses per Array |
2 x 4 Lane |
2 x 4 Lane |
Max 12 Gb/s SAS BE Buses per Array |
2 x 4 Lane |
2 x 4 Lane |
Max FE (front end) Total Ports per Array (all types) |
24 |
24 |
Max Initiators per Array |
1,024 |
2,048 |
Max FC Ports per Array |
20 |
20 |
Embedded 10GbaseT Ports per Array |
4 |
4 |
Embedded CNA ports per Array |
4 ports: 8/16 Gb FC**, 10Gb IP/iSCSI, or 1Gb RJ45 |
4 ports: 8/16 Gb FC**, 10Gb IP/iSCSI, or 1Gb RJ45 |
1 GbaseT/iSCSI Max Total Ports per Array |
24 |
24 |
10 GbE/iSCSI Max Total Ports per Array |
24 |
24 |
Max Raw Capacity*** |
2.4 PBs |
4.0 PBs |
Max SAN Hosts |
512 |
1,024 |
Max Number of Pools |
20 |
30 |
Max Number of LUNs per Array |
1,000 |
1,500 |
Max LUN Size |
256 TB |
256 TB |
Max file systems per Array |
1000 |
1500 |
Max File System Size |
256 TB |
256 TB |
Max attached snapshots per Array (Block) |
1000 |
1500 |
IOPS**** |
up to 130K |
up to 305K |
OS Support |
See EMC Simple Support Matrix on emc.com |
|
* Two IO Modules per Storage Processor (SP), mirrored. ** 16Gb available in both single mode and multimode. *** Maximum raw capacity will vary based on drive sizes available at time of purchase. **** 100% Reads, 8K block size |
