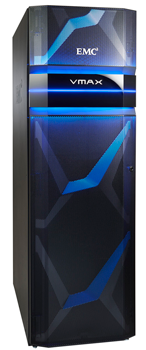

EMC VMAX3 FAMILY - VMAX 100K, 200K, 400K
The newest additions to the EMC® VMAX® family deliver the latest in Tier-1 scale-out multi-controller architecture with consolidation and efficiency for the enterprise. With completely redesigned hardware and software, the new VMAX 100K, 200K, and 400K arrays provide unprecedented performance and scale. Ranging from the single or dual engine VMAX 100K up to the 8-engine VMAX 400K, these new arrays offer dramatic increases in floor tile density with engines and high capacity disk enclosures for both 2.5" and 3.5" drives consolidated in the same system bay. In addition, VMAX 100K, 200K, and 400K can be configured as either hybrid or all flash configurations.
This revolutionary new VMAX3 architecture delivers Virtual Matrix Bandwidth of 175GB/s per engine and up to 1400GB/s across an eight engine VMAX3 array. All new VMAX3 models come fully pre-configured out of the factory to significantly shorten the time to first I/O during installation.
Specifications
UNMATCHED ARCHITECTURE
The Dynamic Virtual Matrix Architecture enables IT departments to build storage systems that transcend the physical constraint of competing array architectures. The architecture allows scaling of system resources through common and fully redundant building blocks called VMAX engines. VMAX engines provide the complete foundation for high-availability storage arrays. Each engine contains two VMAX directors and redundant interfaces to the new Dynamic Virtual Matrix dual InfiniBand® fabric interconnect. Each director consolidates front-end, global memory, and back-end functions, enabling direct memory access to data for optimized I/O operations. Depending on the array chosen, up to 8 VMAX engines can be interconnected via a set of active fabrics that provide scalable performance and high availability.
The new VMAX arrays support the use of native 6Gb/s SAS 2.5” drives, 3.5” drives, or a mix of both drive types in the array. Individual system bays can house either one or two engines and up to the per engine maximum of 6 High Density Disk Array Enclosures (DAEs) available in either 3.5” (60 slot) or 2.5" (120 slot) formats. As a result, each system bay can support up 720 2.5" drives or up to 360 3.5" drives, or a mix of the
two. In addition, all new arrays support subsequent system bay dispersion of up to 25 meters from the first system bay. All new members of the family also support 3rd party racking. Detailed specifications and a comparison of the three new VMAX3 arrays follow.
|
COMPONENTS |
VMAX 100K |
VMAX 200K |
VMAX 400K |
|
ENGINE |
|||
|
Engine Enclosure |
4u |
4u |
4u |
|
CPU |
Intel Xeon E5-2620-v2 2.1 GHz 6 core |
Intel Xeon E5-2650-v2 2.6 GHz 8 core |
Intel Xeon E5-2697-v2 2.7 GHz 12 core |
|
Dynamic Virtual Matrix Bandwidth |
350GB/s |
700GB/s |
1400GB/s |
|
# Cores per CPU/per Engine/per System |
6/24/48 |
8/32/128 |
12/48/384 |
|
Dynamic Virtual Matrix Interconnect |
InfiniBand Dual Redundant Fabric 56Gbps per port |
InfiniBand Dual Redundant Fabric 56Gbps per port |
InfiniBand Dual Redundant Fabric 56Gbps per port |
|
CACHE |
|||
|
Cache-System Min (raw) |
512GB |
512GB |
512GB |
|
Cache-System Max (raw) |
2TBr (with 1024GB engine) |
8TBr (with 2048GB engine) |
16TBr (with 2048GB engine) |
|
Cache-per Engine Options |
512GB, 1024GB |
512GB, 1024GB, 2048GB |
512GB, 1024GB, 2048GB |
|
XtremCache Support |
Yes |
Yes |
Yes |
|
VAULT |
|||
|
Vault Strategy |
Vault to Flash |
Vault to Flash |
Vault to Flash |
|
Vault Implementation |
2 to 4 Flash SLICs / Engine |
2 to 8 Flash SLICs / Engine |
2 to 8 Flash SLICs / Engine |
|
IO MODULES |
|||
|
Max Front-End Ports per Engine |
32 |
32 |
32 |
|
Front-End IO Modules per Engine |
8 |
8 |
8 |
|
Front-End IO Modules and Protocols Supported |
FC 8Gbs: (FC, SRDF) FC 16Gbs: (FC) GbE: (SRDF) 10GbE: (SRDF) |
FC 8Gbs: (FC, SRDF) FC 16Gbs: (FC) GbE: (SRDF) 10GbE: (SRDF) |
FC 8Gbs: (FC, SRDF) FC 16Gbs: (FC) GbE: (SRDF) 10GbE: (SRDF) |
|
BE Interface |
6Gbps SAS |
6Gbps SAS |
6Gbps SAS |
|
|
|
|
|
|
CAPACITY, DRIVES |
|||
|
Max Capacity |
500 TB |
2 PB |
4 PB |
|
Max Drives per System |
1440 |
2880 |
5760 |
|
Max Drives per System Bay |
720 |
720 |
720 |
|
Max Drives per Storage Bay |
960-Supported with Dual Engine System bays only |
960-Supported with Dual Engine System bays only |
960-Supported with Dual Engine System bays only |
|
Min Spares per System |
1 |
1 |
1 |
|
Min Drive Count (1 engine) |
4 + 1 spare |
4 + 1 spare |
4 + 1 spare |
|
DRIVES |
|||
|
3.5” SAS Drives |
3.5" Drives: |
3.5" Drives: |
3.5" Drives: |
|
300GB, 600GB, 1.2TB 10K RPM SAS |
300GB, 600GB, 1.2TB 10K RPM SAS |
300GB, 600GB, 1.2TB 10K RPM SAS |
|
|
300GB 15K RPM SAS |
300GB 15K RPM SAS |
300GB 15K RPM SAS |
|
|
2TB 7.2K RPM SAS |
2TB 7.2K RPM SAS |
2TB 7.2K RPM SAS |
|
|
4TB 7.2K RPM SAS |
4TB 7.2K RPM SAS |
4TB 7.2K RPM SAS |
|
|
200, 400, 800GB Flash SAS |
200, 400, 800GB Flash SAS |
200, 400, 800GB Flash SAS |
|
|
2.5” SAS Drives |
2.5" Drives: |
2.5" Drives: |
2.5" Drives: |
|
300GB, 600GB, 1.2TB 10K RPM SAS |
300GB, 600GB, 1.2TB 10K RPM SAS |
300GB, 600GB, 1.2TB 10K RPM SAS |
|
|
300GB 15K RPM SAS |
300GB 15K RPM SAS |
300GB 15K RPM SAS |
|
|
200, 400, 800GB Flash SAS |
200, 400, 800GB Flash SAS |
200, 400, 800GB Flash SAS |
|
|
RAID Options |
RAID 1 All drives |
RAID 1 All drives |
RAID 1 All drives |
|
RAID 5 (3 +1) RAID 5 (7 +1) All drives |
RAID 5 (3 +1) RAID 5 (7 +1) All drives |
RAID 5 (3 +1) RAID 5 (7 +1) All drives |
|
|
RAID 6 (6 +2) RAID 6 (14 +2) 10K, 15K, 7.2K RPM Drives |
RAID 6 (6 +2) RAID 6 (14 +2) 10K, 15K, 7.2K RPM Drives |
RAID 6 (6 +2) RAID 6 (14 +2) 10K, 15K, 7.2K RPM Drives |
|
|
SYSTEM CONFIGURATION TYPES |
|||
|
All 2.5" DAE Configurations |
2 Bays 1440 Drives |
4 Bays 2880 Drives |
8 Bays 5760 Drives |
|
All 3.5" DAE Configurations |
2 Bays 720 Drives |
4 Bays 1440 Drives |
8 Bays 2880 Drives |
|
Mixed Configurations |
2 Bays 1320 Drives |
2 Bays 2640 Drives |
8 Bays 5280 Drives |
|
DISK ARRAY ENCLOSURES |
|||
|
120 x 2.5” Drive DAE |
Yes |
Yes |
Yes |
|
60 x 3.5” Drive DAE |
Yes |
Yes |
Yes |
|
CABINET CONFIGURATIONS |
|||
|
Standard 19" bays |
Yes |
Yes |
Yes |
|
Single Bay System Configuration |
Yes |
Yes |
Yes |
|
Dual Engine System Bay Configuration |
Yes |
Yes |
Yes |
|
Third Party Rack Mount Option |
Yes |
Yes |
Yes |
|
DISPERSION |
|||
|
System Bay Dispersion |
Up to 82 feet (25m) between System Bay 1 and any other System Bay |
Up to 82 feet (25 m) between System Bay 1 and any other System Bay |
Up to 82 feet (25 ) between System Bay 1 and any other System Bay |
|
Dual Engine Storage Bay Dispersion |
No |
No |
No |
|
Power |
Single or Three Phase Delta or Wye |
Single or Three Phase Delta or Wye |
Single or Three Phase Delta or Wye |
|
PRE-CONFIGURATION |
|||
|
100% Virtually Provisioned |
Yes |
Yes |
Yes |
|
Preconfigured in the Factory |
Yes |
Yes |
Yes |
|
HOST SUPPORT |
|||
|
Open Systems |
Yes |
Yes |
Yes |
|
IBM i Series Support (D910 only) |
Yes |
Yes |
Yes |
|
HARDWARE COMPRESSION SUPPORT |
|||
|
GbE/10 GbE |
Yes |
Yes |
Yes |
|
8Gb FC |
Yes |
Yes |
Yes |
