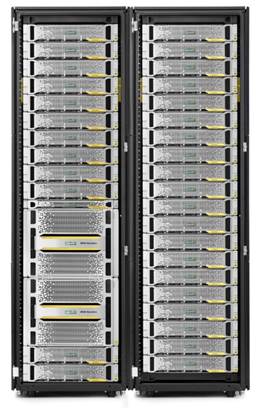

HPE 3PAR 20000
Base price
Description
The HPE 3PAR StoreServ 20000 Storage family offers enterprise flash arrays ready for massive consolidation of today’s most demanding workloads with greater than 3 million IOPS for an 8-node system, sub-millisecond latencies, a 4X density advantage, and scalability to 24PB of usable capacity. The family’s flash-first architecture features the HPE 3PAR Thin Express ASIC for silicon-based hardware acceleration of thin technologies, including inline deduplication to reduce acquisition and operational costs by up to 75% without compromising performance. With HPE Memory Driven Flash, a new class of enterprise storage that empowers data at the speed of memory, you can accelerate application response times with storage class memory (SCM). The 3PAR StoreServ 20000 utilizes NVMe protocol to access SCM as an extended cache for latency sensitive applications, and the 3PAR NVMe 750GB SCM module is very easy to install. A choice of models provide a range of options that support true convergence of block and file protocols offering flexible host connectivity, while providing all-flash array performance, and the use of solid state drives (SSDs) with spinning media for unmatched versatility. Enhanced Tier-1 storage capabilities for always-on data access and fine-grained Quality of Service (QoS) controls ensure predictable service levels for all workload types while bi-directional data mobility enables virtually limitless elastic pools of storage to support the most rigorous on-demand infrastructure.
|
HPE 3PAR StoreServ 20450 Storage |
HPE 3PAR StoreServ 20800 Storage |
HPE 3PAR StoreServ 20850 Storage |
HPE 3PAR StoreServ 20840 Storage |
|
|
Capacity details |
||||
|
Number of controller nodes |
2 or 4 |
2, 4, 6 or 8 |
2, 4, 6 or 8 |
2, 4, 6 or 8 |
|
HPE 3PAR Gen5 ASICs |
4 or 8 |
4, 8, 12 or 16 |
4, 8, 12 or 16 |
4, 8, 12 or 16 |
|
Management processors |
4-8 x 8 core 2.5 GHz |
4-16 x 8 core 2.5 GHz |
4-16 x 10 core 2.4 GHz |
|
|
Total cache |
0.9-1.8TiB |
0.6-34.5TiB |
0.9-3.6TiB |
0.9-51.6TiB |
|
Flash cache (Optional) |
NA |
0-32TiB |
NA |
0-48TiB |
|
Maximum on-node cache |
896-1792GiB |
640-2560GiB |
896-3584GiB |
896-3584GiB |
|
Total NVMe storage class memory module |
2-4TB 3TB |
2-8TB 6TB |
2-8TB 6TB |
2-8TB 6TB |
|
Maximum host ports |
80 Ports |
160 Ports |
160 Ports |
160 Ports |
|
32 Gb/s Fibre Channel (FC) host ports1 |
0-40 Ports |
0-80 Ports |
0-80 Ports |
0-80 Ports |
|
16 Gb/s FC host ports2 |
0-80 Ports |
0-160 Ports |
0-160 Ports |
0-160 Ports |
|
10 Gb/s iSCSI host ports2 |
0-40 Ports |
0-80 Ports |
0-80 Ports |
0-80 Ports |
|
10 GbE network ports3 for file persona |
0-24 Ports |
0-48 Ports |
0-48 Ports |
0-48 Ports |
|
Built-in 10 GbE ports4 |
2-4 Ports |
2-8 Ports |
2-8 Ports |
2-8 Ports |
|
Number of Hard Disk Drive (HDD) |
NA |
6-2304 Drives |
NA |
6-2304 Drives |
|
Number of Solid State Drive (SSD) |
6-576 Drives |
6-1152 Drives |
6-1152 Drives |
6-1152 Drives |
|
Raw capacity |
1.925 -4021TiB6 |
1.925 -9600TiB6 |
1.925 -8043TiB6 |
1.925 -9600TiB6 |
|
Raw capacity (SSD only) |
1.925 -4021TiB6 |
1.925 -8043TiB6 |
1.925 -8043TiB6 |
1.925 -8043TiB6 |
|
Maximum usable file capacity7 |
2-512TiB6 |
2-1024TiB6 |
2-1024TiB6 |
2-1024TiB6 |
|
RAID levels |
RAID 0, 1, 5, MP8 |
RAID 0, 1, 5, MP8 |
RAID 0, 1, 5, MP8 |
RAID 0, 1, 5, MP8 |
|
RAID 5 data to parity ratios |
2:1-8:1 |
2:1-8:1 |
2:1-8:1 |
2:1-8:1 |
|
RAID 6 data to parity ratios |
4:2 6:2 8:2 10:2 12:2 14:2 |
4:2 6:2 8:2 10:2 12:2 14:2 |
4:2 6:2 8:2 10:2 12:2 14:2 |
4:2 6:2 8:2 10:2 12:2 14:2 |
|
Drive capacities (SSD)9 |
920GB SSD 1920GB SSD 3840GB SSD 7680GB SSD 15360GB SSD |
920GB SSD 1920GB SSD 3840GB SSD 7680GB SSD 15360GB SSD |
920GB SSD 1920GB SSD 3840GB SSD 7680GB SSD 15360GB SSD |
920GB SSD 1920GB SSD 3840GB SSD 7680GB SSD 15360GB SSD |
|
Drive capacities (HDDs) |
NA |
300 15K SAS10 600 15K SAS10 600 10K SAS10 1200 10K SAS10 1800 10K SAS10 2000 7.2K SAS NL11 4000 7.2K SAS NL11 6000 7.2K SAS NL11 8000 7.2K SAS NL11 |
NA |
300 15K SAS10 600 15K SAS10 600 10K SAS10 1200 10K SAS10 1800 10K SAS10 2000 7.2K SAS NL11 4000 7.2K SAS NL11 6000 7.2K SAS NL11 8000 7.2K SAS NL11 |
|
Number of drives enclosures12 |
213-48 Enclosures |
213-96 Enclosures |
213-96 Enclosures |
213-96 Enclosures |
|
Support for 3PAR StoreServ file controller v3 |
Yes |
Yes |
Yes |
Yes |
