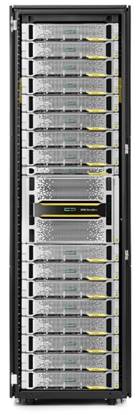

The HPE 3PAR StoreServ 9000 Storage is an enterprise-class flash array that helps you consolidate primary storage workloads - for file, block, and object offering flexible IO host connectivity - without compromising performance, scalability, data services, or resiliency. This newest 3PAR model based on the proven 3PAR architecture is purpose built for all-flash consolidation, delivering the performance, simplicity, and agility needed to support your hybrid IT environment. HPE 3PAR StoreServ 9000 Storage is available in a single all-flash model, the 9450, that offers rich Tier-1 data services, quad-node resiliency, fine-grained Quality of Service (QoS), seamless data mobility between systems, high availability through a complete set of persistent technologies, and simple and efficient data protection with a flat backup to HPE StoreOnce Backup appliances.
Summary |
9450 |
Number of Controller Nodes |
2 or 4 |
HPE 3PAR Gen5 ASICs |
4 or 8 |
Processors |
4-8 x 10-core 2.4 GHz |
Total Cache |
896 GiB |
Total Cache per node pair |
448 GiB |
Maximum Host Ports |
80 ports |
32Gb/s Fiber Channel Host Ports |
0 – 40 ports |
16Gb/s Fiber Channel Host Ports |
0 – 80 ports |
10Gb/s iSCSI Host Ports |
0 – 40 ports |
10Gb/s Ethernet Ports for File Persona |
0 – 24 ports |
Built-in 10GbE Ports1 |
2 – 4 ports |
Number of Solid State Drives |
6 – 576 |
Max Raw Capacity2 |
6000 TiB3 |
Maximum Usable File Capacity4 |
2 – 512 TiB |
Capacity Details |
9450 |
RAID Levels |
RAID 0, 1, 5, 6 |
RAID 5 Data to Parity Ratios |
2:1 - 8:1 |
RAID 6 Data to Parity Ratios |
4:2, 6:2, 8:2, 10:2, 12:2, 14:2 |
Drive Capacities (SSDs)5 |
1.92TB SSD, 3.84TB SSD, 7.68TB SSD, 15.36TB SSD |
Number of Add-on Drive Enclosures6 |
2 – 48 enclosures7 |
