HPE MSA 2060
Base price
Description

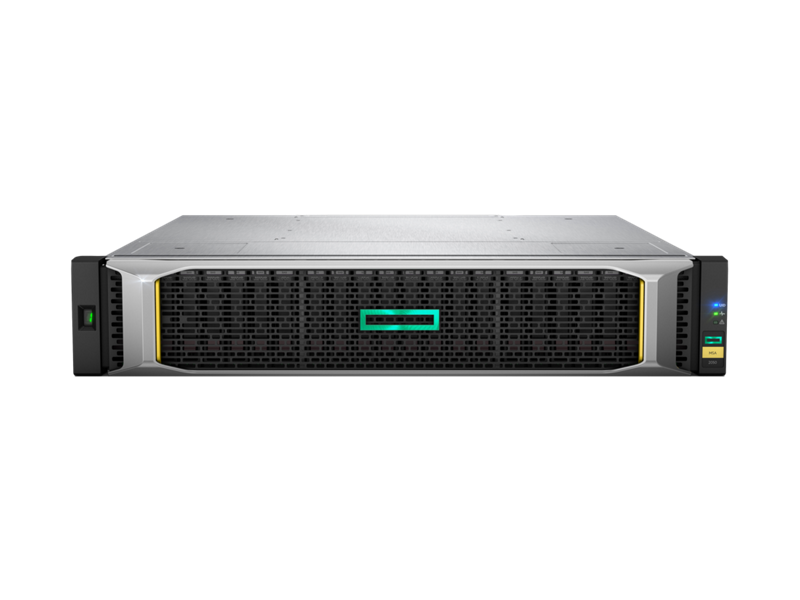

The HPE MSA 2060 is a flash-ready hybrid storage system designed to deliver hands-free, affordable application acceleration for small and remote office deployments. Don’t let the low cost fool you. It gives you the combination of simplicity, flexibility, and advanced features you may not expect in an entry-priced array. Start small and scale as needed with any combination of solid state drives (SSDs), high-performance Enterprise SAS HDDs, or lower-cost Midline SAS HDDs. With the ability to deliver up to 395,000 IOPS, the new MSA 2060 is up to 80% faster than its prior generation with ample horsepower for even the most demanding workloads.
|
HPE MSA 2060 Storage |
|
|
Array |
|
|
Access Type |
Block |
|
Form Factor |
2U, SFF or LFF |
|
Number of controllers per array |
2 |
|
Number of host ports per array |
8 |
|
FC host connectivity |
16Gb |
|
iSCSI host connectivity |
10GbE, 10GBase-T |
|
SAS host connectivity |
12Gb |
|
Cache, per array |
|
|
Max Read cache per array |
8TB |
|
Data (read/write) cache + system memory per array |
24GB |
|
Pool Capacity |
Two Pools with 1 PB each |
|
RAID Levels supported: |
RAID 0*,1, 5, 6, 10, MSA-DP+ Notes: *Read Cache Only |
|
Enclosures |
|
|
Expansion Drive Enclosures |
0-9 enclosures |
|
LFF/SFF array/enclosure mixing |
Supported |
|
Maximum number of drives per array enclosure |
24 SFF or 12 LFF |
|
Maximum number of drives per drive enclosure |
24 SFF or 12 LFF |
|
Drive enclosure interface type |
12Gb SAS |
|
Drives |
|
|
Maximum total HDDs per array |
240 SFF / 120 LFF |
|
Maximum total SSDs per array |
240 SFF / 120 LFF |
|
Max raw capacity per array enclosure |
92.16TB SFF / 216TB LFF |
|
Max raw capacity per drive enclosure |
92.16TB SFF / 216TB LFF |
|
Max raw capacity per array |
921.6TB SFF / 2.16 PB LFF |
|
Drive Capacities |
|
|
SFF SSDs |
960GB, 1.92TB, 3.84TB |
|
LFF SSD |
1.92TB |
|
SFF HDDs |
15K: 900GB 10K: 600GB, 1.2TB, 1.8TB, 2.4TB |
|
LFF HDDs |
7.2K: 6TB, 8TB, 10TB, 12TB, 14TB, 16TB, 18TB |
|
Self-Encrypting SSDs |
SFF: 960GB, 1.92TB LFF: 1.92TB |
|
Self-Encrypting HDDs Notes: Sold in 6 Pack bundles only |
SFF: 900GB, 2.4TB LFF: 12TB |
|
Software Features |
|
|
Thin Technologies |
Thin Provisioning, Space Reclamation, Thin Rebuild |
|
Tiering |
Performance Tier, Standard Tier, Archive Tier |
|
Replication |
Snapshots (512), Volume Copy, Remote Snaps |
|
Quality of Service |
Virtual Tier Affinity |
|
Additional Features |
|
|
Maximum number of volumes |
512 |
|
Maximum number of snapshots |
512 |
|
Maximum number of hosts |
512 |
|
Maximum number of initiators |
1024 |
|
Customer self-installable |
Yes |
|
Customer self-repairable |
Yes |
|
Customer self-upgradeable |
Yes |
|
Health Check analytics |
Yes |
|
Energy Star Certified |
Yes |
